Panel Size: 500×500×28mm
Loading Range: 440lb-1250lb
Finished Floor Height:≥ FFH50mm

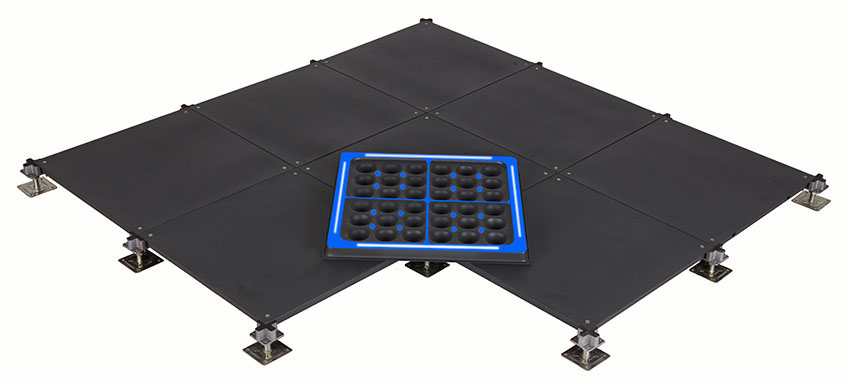

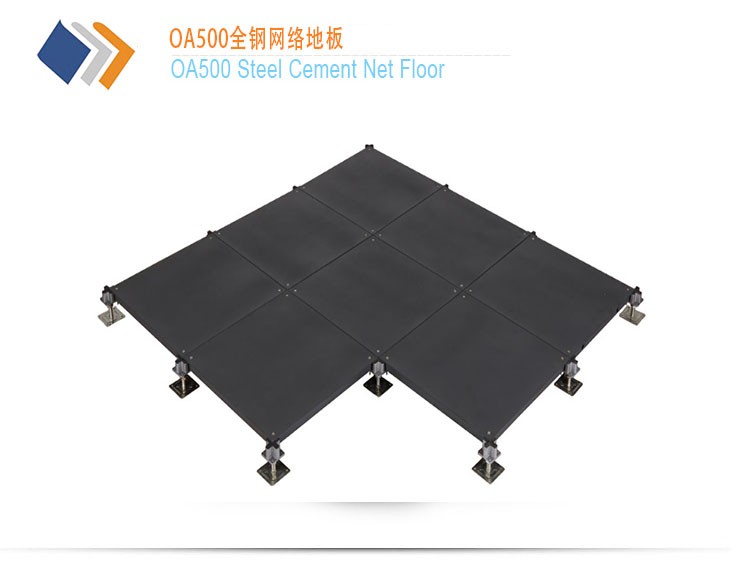

OA500 Steel Access Floor
Product Structure:
Top plate using SPCC cold rolled steel, bottom plate using ST14 steel for stretch,after automatic spot welding, environmental friendly oil treatment, wear resistantepoxy coating, the panel is infilled with foamed cement. Each panel has 4 cornerlock holes.

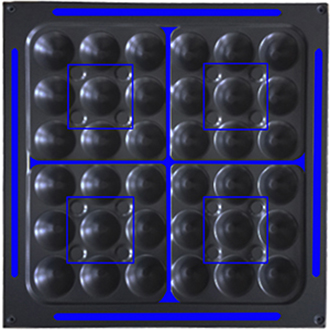

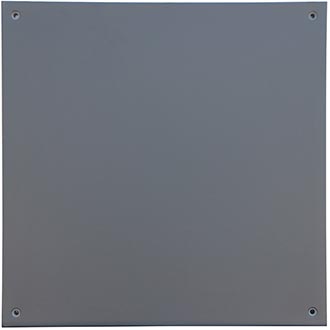

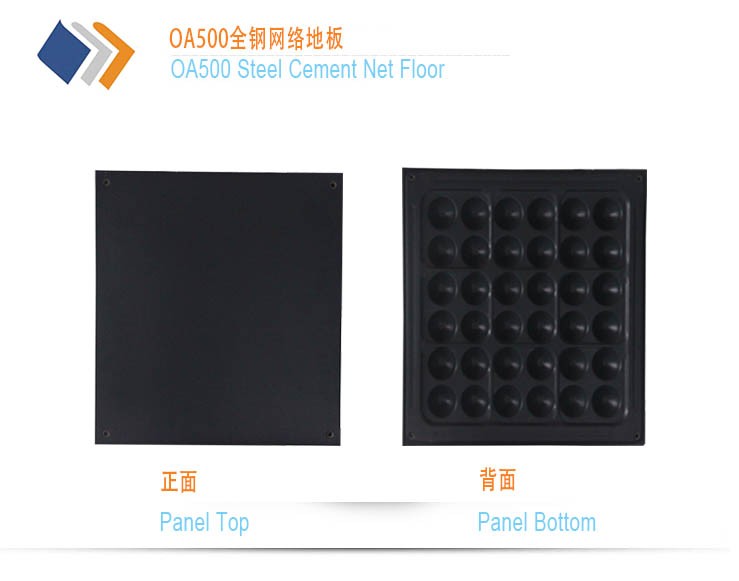

top bottom
open hole types
Product Feature:
| 1. All steel component, excellent loading capacity and fire-resistance. 2.Cross rib and wide bottom board design, improves panel loading capacity. 3.Precise panel size, interchangeable with each panel. 4.Small size panel, low unit weight less total pressure to building, convenient in installation and maintenance. 5.Dark-grey epoxy coating, hard wearing and anti-corrosive. |
Application:
| OA500 Net Floor system is widely used in 5A Intelligent Buildings and Office Buildings, it is also an ideal solution for old office building reconstruction. |

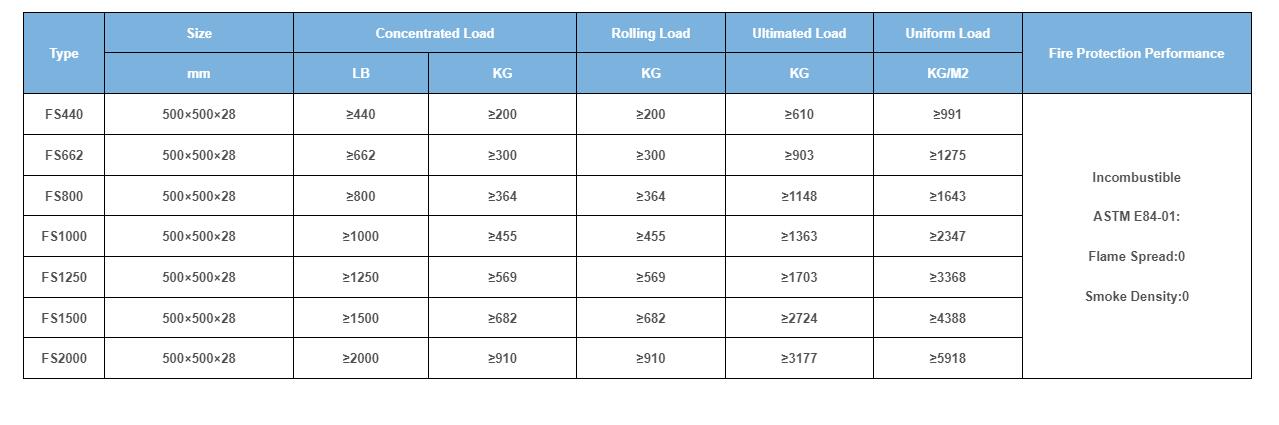

Loading Chart:
