OA500 Cable System Steel Access Floor

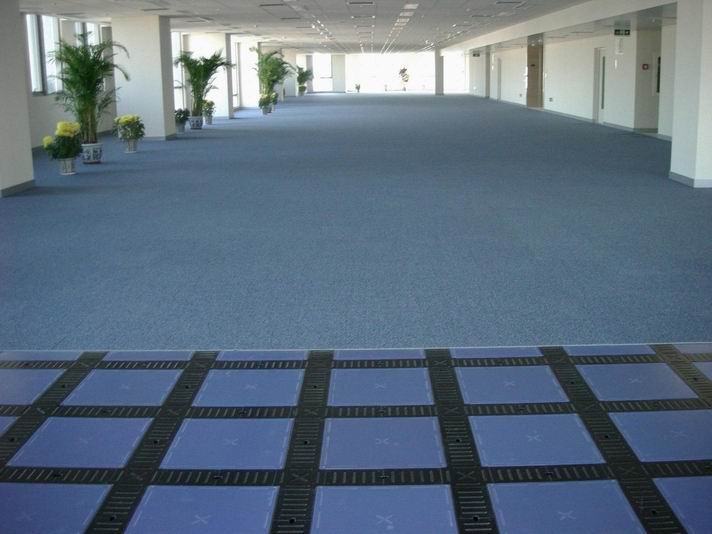

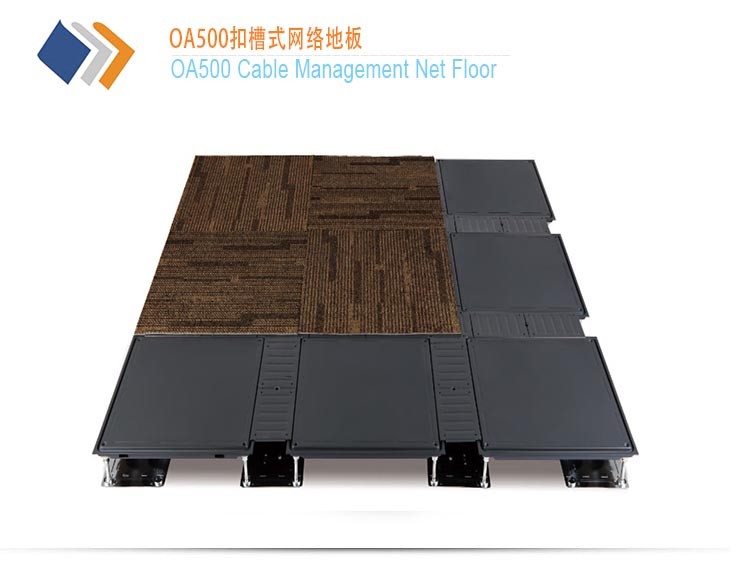

OA500 Cable Management Net Floor system has trunking around each panel. The panel is supported by 4 screws connected with galvanized steel base. Panel height can be adjusted from the top of panel. Each trunk has an outlet hole,offering maxmium solution of wiring. Strong and weak currency can be marked and seperated in different trunks which is conventient for maintance and reconstruction, also saving building space.

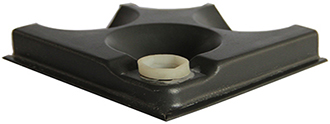

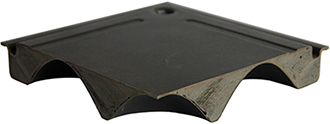

long plate                     square plate                   border plate

Product Feature：

1.FFH35-150MM,recommended FFH 50mm be conviented for outlett box installation.Low floor finished height offers more room space above floor.

2.Strong and weak currency markable and seperatable,conventient for maintance.

3.Outlet holes available at each connecting point of 2 trunks,conventient for wire outleting.

4.Modulized Trunking plated interchangeable with each other.

5.Trunking plate interchangeable with outlet boxes.

6.Screw-like Support Legs,height adjustable from the top of panel,higher installation effiency.

7.Small size panel,2/3 weight of normal panel.

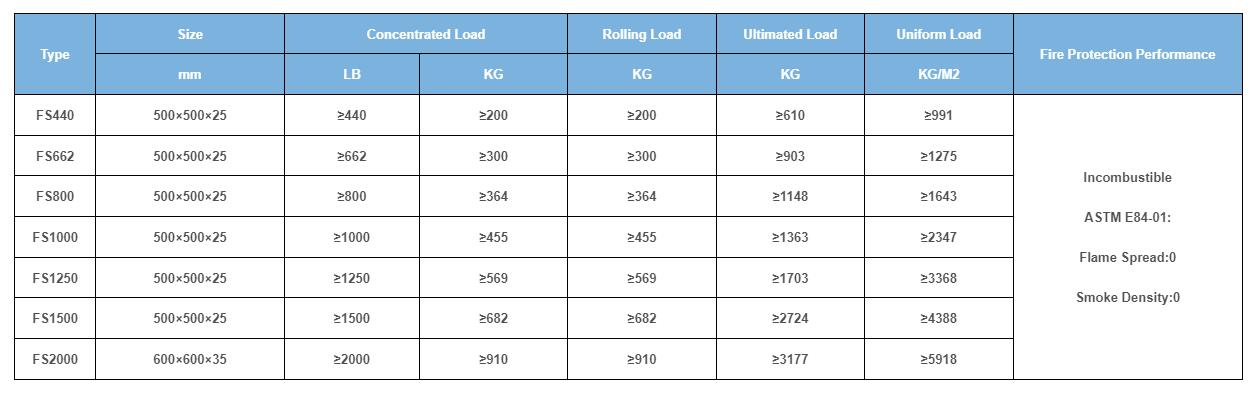

Loading Chart：
