Core: Wood / Chipboard
Panel Size: 600mm × 600mm
Panel Thickness: 30mm，40mm
Panel Finish: Ceramic,HPL,PVC
Product description: Anti-static Woodcore Panel, Anti-static Woodcore Access Floor

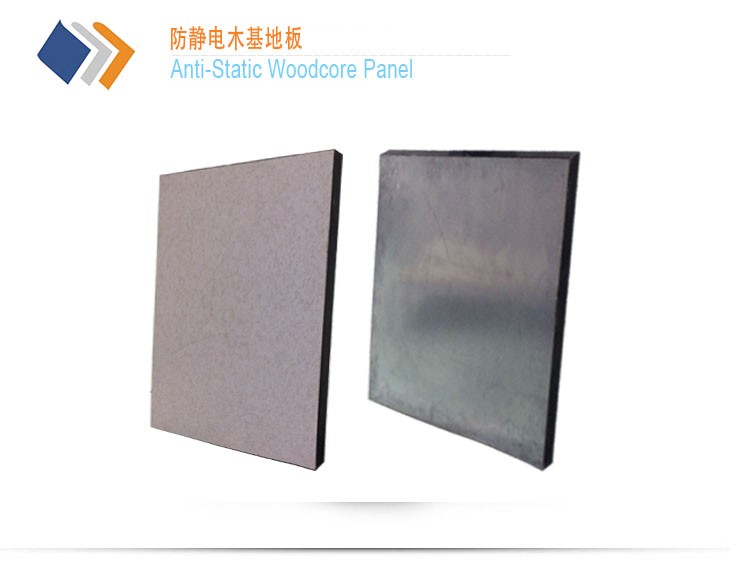

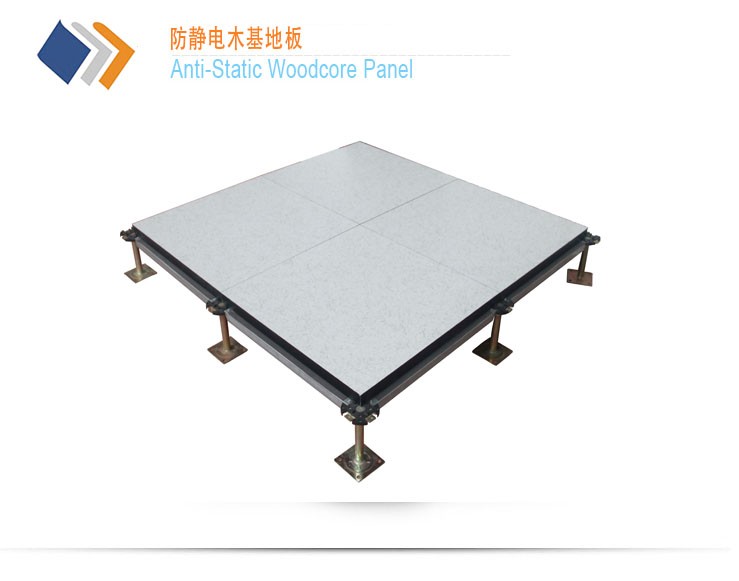

Anti-static Woodcore Panel
Product Structure：

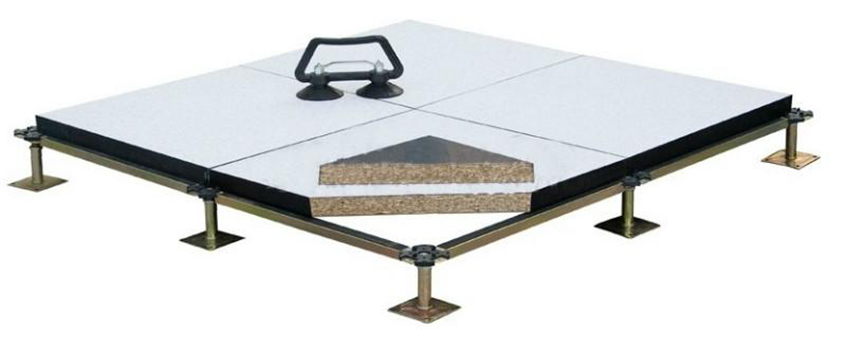

Woodcore access floor consists of highdensity (720Kg/m3) chipboard. Galvanized steel sheet is bonded to the bottom of the chipboard. HPL, PVC or Ceramic is stuck to the top of the chipboard, four edges are sealed with PVC edge trims.
|
|

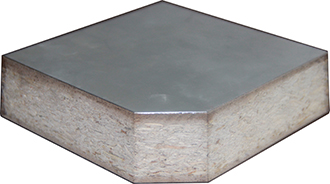

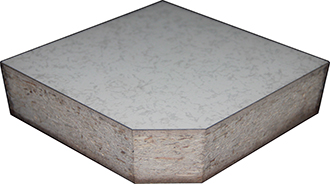

| Panel Cut View-Top | Panel Cut View-Bottom |
Product Feature：
1. Water-proof, fire-proof, anti-corrosive and sound insulation.
2. High dimension accuracy and excellent interchangeability.
3. Good loading performance.
4. Elaborated made and good decorative effect.
Application：
Anti-static woodcore floor is widely used in places where have high requirement of anti-static,loading and finished apperance, like: bank,communication equipment room, intelligent office and so on.
Loading Chart：
| Type | Size | Concentrated Load | Rolling Load | Ultimated Load | Uniform Load | Fire Protection Performance | System resistance | |
| mm | LB | KG | KG | KG | KG/M2 | |||
| Incombustible ASTM E84-01: Flame Spread:0 Smoke Density:0 | 106-1010Ω Static dissipative | |||||||
| Medium Duty | 600×600×30 | ≥800 | ≥363 | ≥250 | ≥1089 | ≥1684 | ||
| Heavy Duty | 600×600×40 | ≥1000 | ≥454 | ≥272 | ≥1362 | ≥2347 | ||
